Description
Piston Average Weight: 459 grams
Piston Volume: -7.30 cc

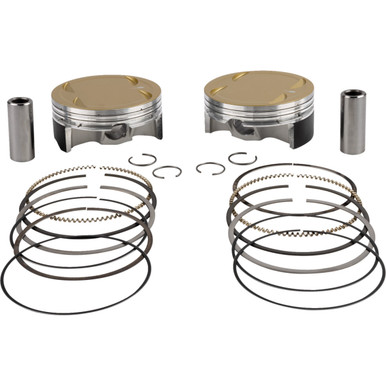

Two cylinder piston kit.
Includes:
• 2x Pistons
• 2x Ring Sets
• 2x Wrist Pins
• 4x Circlips
Features
- Propriety aligned grain flow forging technology for maximum tensile strength suited for high performance enviroment
- Cermic crown coating protects the piston by reducing heat transfer
- Internal and external bracing maintains optimized strength-to-weight ratio for longevity
- 3D undercrown milling in non-critical areas reduces overall weight
- Lateral gas ports and accumulator groove maintain power-producing ring seal even at high RPM and high boost
- Tuff Skirt is a propriety, moly based dry film skirt coating that is applied in-house and reduces operating friction for better wear resistance
- Offset pin reduces piston rock and minimize engine operating noise
- Skirt notches for optimal clearance at the bottom dead center
- Kit includes two pistons, premium ring pack, wrist pins and wire locks
Specs
| Units | Kit |
| Compression Ratio | 11.25:1 |
| Model | Ultra Series |
| Piston Material | Forged 2618 Aluminum |
| Bore – Oversize | +0,060″ |
| Riding Style | Street |
| Bore Size | 4.310″ |
| Piston Head Shape | Dished |
| Skirt Coating | Tuff Skirt |
| Stroke Length | 4.500″ |
| Type | Forged Side Relief Design |
| Product Name | Piston Kit |
